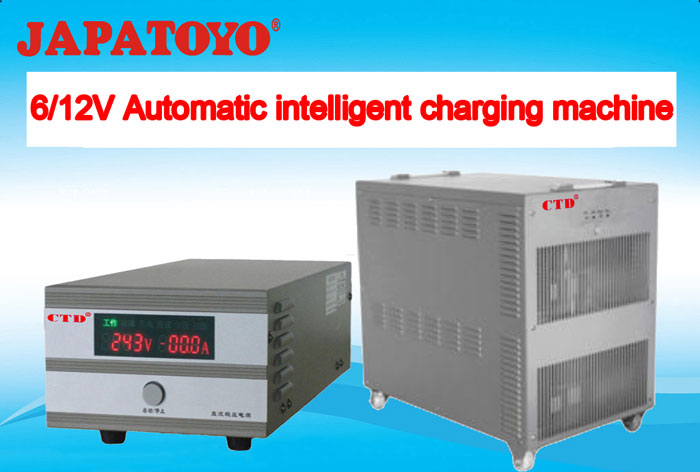

Electric vehicle / Power panel/EPS/UPS batteryautomatic intelligent charger (Can be customized for users all kinds ofcharger)
|
Type
|
Main technical parameters
|
Appearance
|
Dimension（mm)
|
Technical
Documents
|
|
CTD6-1
|
6V 1A Automatic intelligent pulse type charger
|
|
|
Download
|
|
CTD12-1
|
12V 1A Automatic intelligent pulse type charger
|
|
75*55*26
|
Download
|
|
CTD12-2
|
12V 2A Automatic intelligent pulse type charger
|
|
|
Download
|
|
CTD12-2
|
12V 4A Automatic intelligent pulse type charger
|
|
|
Download
|
|
CTD12-8
|
12V 8A Automatic intelligent pulse type charger
|
|
|
Download
|
|
CTD24-2
|
24V 2A Automatic intelligent pulse type charger
|
|
|
Download
|
|
CTD24-5
|
24V 5A Automatic intelligent pulse type charger
|
|
|
Download
|
|
CTD12/24-30
|
12V/24V 6～30A The adjustable automatic intelligent pulse type charger
|
5
|
320×90×300
|
Download
|
|
CTD12-30
|
12V/30A Three phase type charger
|
5a
|
320×90×300
|
Download
|
|
CTD12-25s（12V25A11）
|
12V/25A Three phase type charger
|
11
|
180X185X480
|
Download
|
|
CTD12-50d（12V50A15）
|
12V/50A Three phase timing type charger, 5 ~ 50A current can be set
|
15
|
180X185X480
|
Download
|
|
CTD12-50d（12V50A19）
|
12V/50A Three phase timing type charger, 5 ~ 50A current can be set
|
19
|
180X185X480
|
Download
|
|
CTD12-50z（12V50A16）
|
12V/50A Intelligent frequent and wide pulse type charger
|
16
|
320X90X300
|
Download
|
|
CTD12-50z（12V50A20）
|
12V/50A Intelligent frequent and wide pulse type charger
|
20
|
320X90X300
|
Download
|
|
CTD12-100d（12V100A17）
|
12V/100A Three phase timing type charger, 5~50A current can be set
|
17
|
180X185X480
|
Download
|
|
CTD12-10d（12V100A19）
|
12V/100A Three phase timing type charger, 10~100A current can be set
|
19
|
180X185X480
|
Download
|
|
CTD12-100z（12V100A18）
|
12V/100A Intelligent frequent and wide pulse type charger
|
18
|
320X90X300
|
Download
|
|
CTD12-100z（12V100A20）
|
12V/100A Intelligent frequent and wide pulse type charger
|
20
|
320X90X300
|
Download
|
|
CTD12-120d（12V120A17）
|
12V/120A Three phase timing type charger, 12~120A current can be set
|
17
|
180X185X480
|
Download
|
|
CTD12-120d（12V120A19）
|
12V/120A Three phase timing type charger, 12~120A current can be set
|
19
|
180X185X480
|
Download
|
|
CTD12-120z（12V120A17）
|
12V/120A Intelligent frequent and wide pulse type charger
|
17
|
320X90X300
|
Download
|
|
CTD12-120z（12V120A20）
|
12V/120A Intelligent frequent and wide pulse type charger
|
20
|
320X90X300
|
Download
|
|
CTD12-200d（12V200A25）
|
12V/200A Three phase timing type charger, 20~200A current can be set
|
25
|
180X185X480
|
Download
|
|
CTD12-200d
（12V200A21）
|
12V/200A Three phase timing type charger, 20~200A current can be set
|
21
|
180X185X480
|
Download
|
|
CTD12-200z
（12V200A26）
|
12V/200A Intelligent frequent and wide pulse type charger
|
26
|
320X90X300
|
Download
|
|
CTD12-200z（12V200A22）
|
12V/200A Intelligent frequent and wide pulse type charger
|
22
|
320X90X300
|
Download
|
|
CTD12-250d（12V250A25）
|
12V/250A Three phase timing type charger, 25~250A current can be set
|
25
|
180X185X480
|
Download
|
|
CTD12-250（d12V250A21）
|
12V/250A Three phase timing type charger, 25~250A current can be set
|
21
|
180X185X480
|
Download
|
|
CTD12-250z（12V250A26）
|
12V/250A Intelligent frequent and wide pulse type charger
|
26
|
320X90X300
|
Download
|
|
CTD12-250z（12V250A22）
|
12V/250A Intelligent frequent and wide pulse type charger
|
22
|
320X90X300
|
Download
|
|
CTD12-300d（12V300A27）
|
12V/300A Three phase timing type charger, 30~300A current can be set
|
27
|
180X185X480
|
Download
|
|
CTD12-300d（12V300A21）
|
12V/300A Three phase timing type charger, 30~300A current can be set
|
21
|
180X185X480
|
Download
|
|
CTD12-300z（12V300A28）
|
12V/300A Intelligent frequent and wide pulse type charger
|
28
|
320X90X300
|
Download
|
|
CTD12-300z（12V300A22）
|
12V/300A Intelligent frequent and wide pulse type charger
|
22
|
320X90X300
|
Download
|
|
CTD12-500d（12V500A37）
|
12V/500A Three phase timing type charger, 40~400A current can be set
|
37
|
180X185X480
|
Download
|
|
CTD12-500-3d（12V500A37）
|
Three-phase AC380V input；12V/500A Three phase timing type charger, 40~400A current can be set
|
37
|
180X185X480
|
Download
|
|
CTD12-1000-3d（12V1000A40）
|
Three-phase AC380V input；12V/1000A Three phase timing type charger, 100~1000A current can be set
|
40
|
180X185X480
|
Download
|
|
CTD12-1000-3z（12V1000A41）
|
Three-phase AC380V input；12V/1000A Intelligent frequent and wide pulse type charger
|
41
|
362X422X555
|
Download
|
(1) Automatic identification load, load access automatically start charging
(2) Automatic identification charging condition (charge), charging modes: constant current - all charge - floating |, stop automatic conversion
(3) Has over current, over voltage, overload, overheating, the multiple protection circuit, such as full automatic shutdown, can realize the unattended
(4) Fully realized unattended
(1) Aerospace, aviation, military, satellite and other equipment
(2) Power panel, EPS, UPS, electric equipment
(3) Computer uninterruptible power supply, telephone exchange
(4)Transmission station, switch control and accident lighting
(5) Fire control, security and alarm monitoring
(6)Communication standby power
(7) Once the substation switch control (8) office automation system
(16)Being displayed mobile machine station, emergency lighting,
(9)Levies, electric vehicles, electric vehicles, Marine, generator
(10) Radio communication system, battery, battery
(11) Medical equipment and instruments
(12)Portable appliances and mining system
(13)Traffic and AIDS to navigation lights
(14)Power plants, hydropower station, the dc power supply
(15)Railway substation switch control with dc power supply
